EIT – UV Broadband Instruments
Online Monitoring allows users to continuously monitor and track a UV source. This is useful in applications where a radiometer will not fit, where high value and/or high production speeds are used and when it is not practical or easy to access each lamp (multi-lamp bank and/or elevated). The feedback is relative and looks at the relative output over time. Online Monitoring will identify both gradual (aging lamps) or sudden (equipment malfunction, user changed parameters) changes in the intensity.
Radiometers provided calibrated irradiance (W/cm2) and energy density values (J/cm2) in one to four bands. Profiling Radiometers also provide the irradiance profile (W/cm2 as a function of time) which is useful to further understand the UV conditions and compare UV systems.
Available Models
Key Features
- Profiling Radiometer that provides UV and Temperature Profiles in addition to irradiance (W/cm2) & energy density (J/cm2) values, works with EIT 2.0 LLC UV PowerView® III Software
- Four bands (UVA, UVB, UVC and UVV), user adjustable effective sample rate (128-2048 Hz)
- Large memory, rechargeable batteries available in a High or Low dynamic range
- ‘Pause’ feature allows user to create eight different files on the production floor
Key Features
- Display with Joule/Watt values plus irradiance profile, works with UV PowerView III
- Profiler sample rate of 128 Hz, adjustable display sample rate: 25, 128 or 2048 Hz
- High Mid or Low dynamic ranges specified at time of order, user changeable batteries

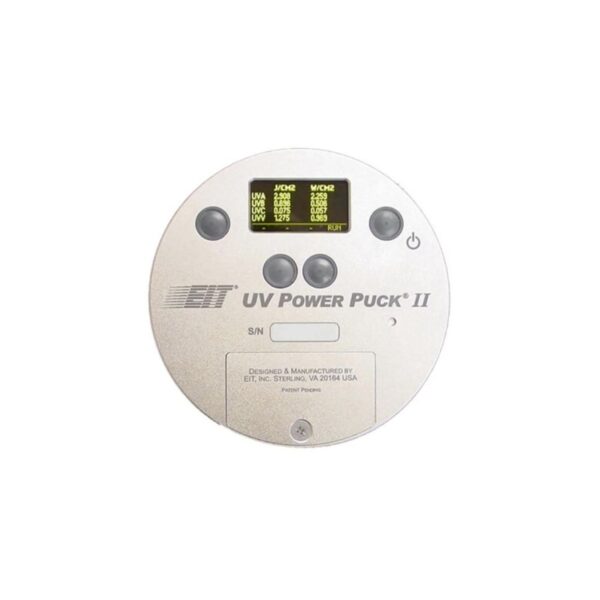

- Power Puck II: Four UV bands (UVA, UVB, UVC UVV)
- UviCure Plus II: Single UV Band specified at order
Key Features
- Radiometer with UV (Joules/cm2 & Watts/cm2) information, user selectable display (Graph, Data or Reference Modes)
- User adjustable sample rates of 25, 128 or 2048 Hz
- Dynamic range (High Mid, Low) specified at time of order, user changeable batteries
- Power Puck II: Four UV bands (UVA, UVB, UVC UVV)
- UviCure Plus II: Single UV Band specified at order
Key Features

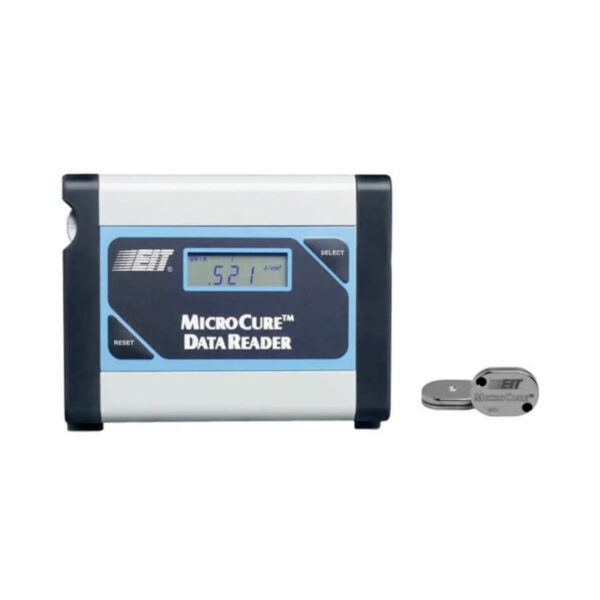

- Small UVA (320-390 nm) radiometer with a high sample rate (2048 Hz)
- Offers the ability to measure in applications where a larger radiometer will not fit
- Each MicroCure is good for 200 readings or one year, whichever comes first
- DataReader is a one-time purchase and displays the Joule/cm2 & Watt/cm2 values
- Available dynamic ranges: 10, 2 and 0.2 W/cm2
Key Features
- Hand-held UVA radiometer used to measure the output of spot-curing systems
- Displays the peak irradiance in W/cm² to determine light guide degradation.
- Available in Standard (20 Watt) or Extended Range (200 Watt) versions
- Measurement head accommodates light guides of various sizes with different adaptors
Key Features
- Precise Measurement for UV LEDs: Instruments are optimized for specific LED wavelengths to provide accurate measurements of UV LED spectral output.
- Patented Total Measured Optic Response: Ensures all optical components contribute to repeatable and reliable measurements across units and production runs.
- Wide Dynamic Range: Supports measurements with a dynamic range of up to 40 W/cm², suitable for high-intensity UV LED systems.
- Advanced Profiling Capabilities: Models like LEDMAP™ and LEDCure® Profiler provide irradiance and energy density profiles, enabling users to monitor temperature and process changes in real-time.
- User-Friendly Features: Instruments feature rechargeable or user-changeable batteries, adjustable sample rates, and memory capacity for multiple runs, ensuring ease of use and efficiency in demanding production environments.
Key Industries
- Semiconductor, Solar & Electronics
