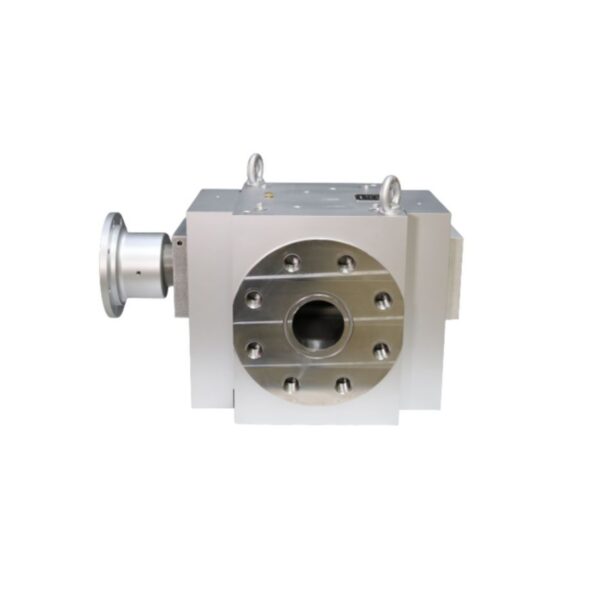

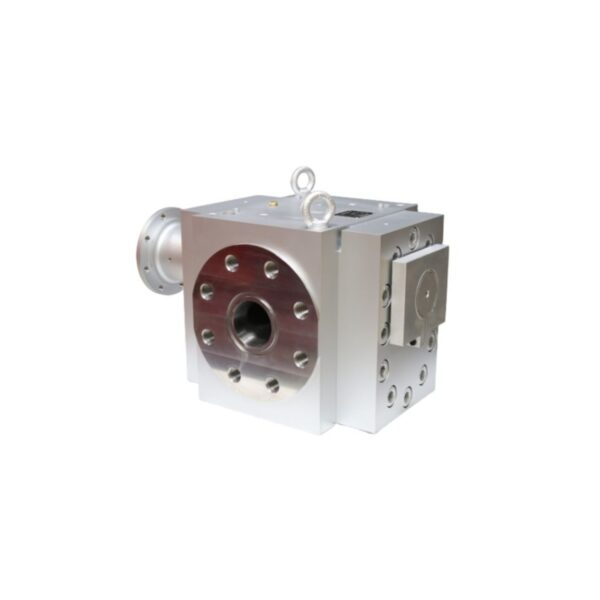

MAAG – extrex6 Recycling
Recycling operations require extremely reliable gear pump systems with high output consistency and a confi guration to suit each recycling application. The modular design of extrex® gear pumps easily meets the requirements for these diverse applications.
The extrex6 recycling pump differs from the general use pump in that it incorporates special components that allow foreign particles to pass through the pump without causing damage. It can also be used effectively in applications with highly fi lled materials.
The design of extrex6 makes it possible to avoid a pre-filtration process in most applications.
Technical Specifications
| Pump Size | Spec. Vol. (ccm) | Throughput (kg/h) | pm (min) |
|---|---|---|---|
| 63/80 | 194 | 1524 | 179 |
| 80/100 | 385 | 2569 | 152 |
| 100/125 | 764 | 4474 | 134 |
| 125/160 | 1545 | 7735 | 114 |
| 160/200 | 3082 | 13105 | 97 |
Key Features
- Highly wear resistant
- Contaminants up to 6mm diamter can pass through
- without causing damage
- Designed to process polymers with up to 80% filler content
- 12 % less energy consumption
- 40 % less temperature increase
- 90 % less pulsation
Key Components
Extrex Recycling
