Excelitas – LightHammer® Series
The LightHammer® series of smart UV curing systems is Excelitas’s most advanced, incorporating solid-state power supplies and internal sensors to monitor real-time system performance. Solid-state power supplies reduce energy costs and provide simple and flexible control schemes via software versus traditional hardware.
Available Models
Technical Specifications
| LightHammer® 6 MARK II | |
| Lamp bulb length | 15 cm, available in D, H, and V spectra |
| Power class | 200 W/cm (500 W/in) |
| Variable power capability | 35% to 100%, fast on/off cycles |
| Irradiator footprint (W x L) | 168 x 168 mm |

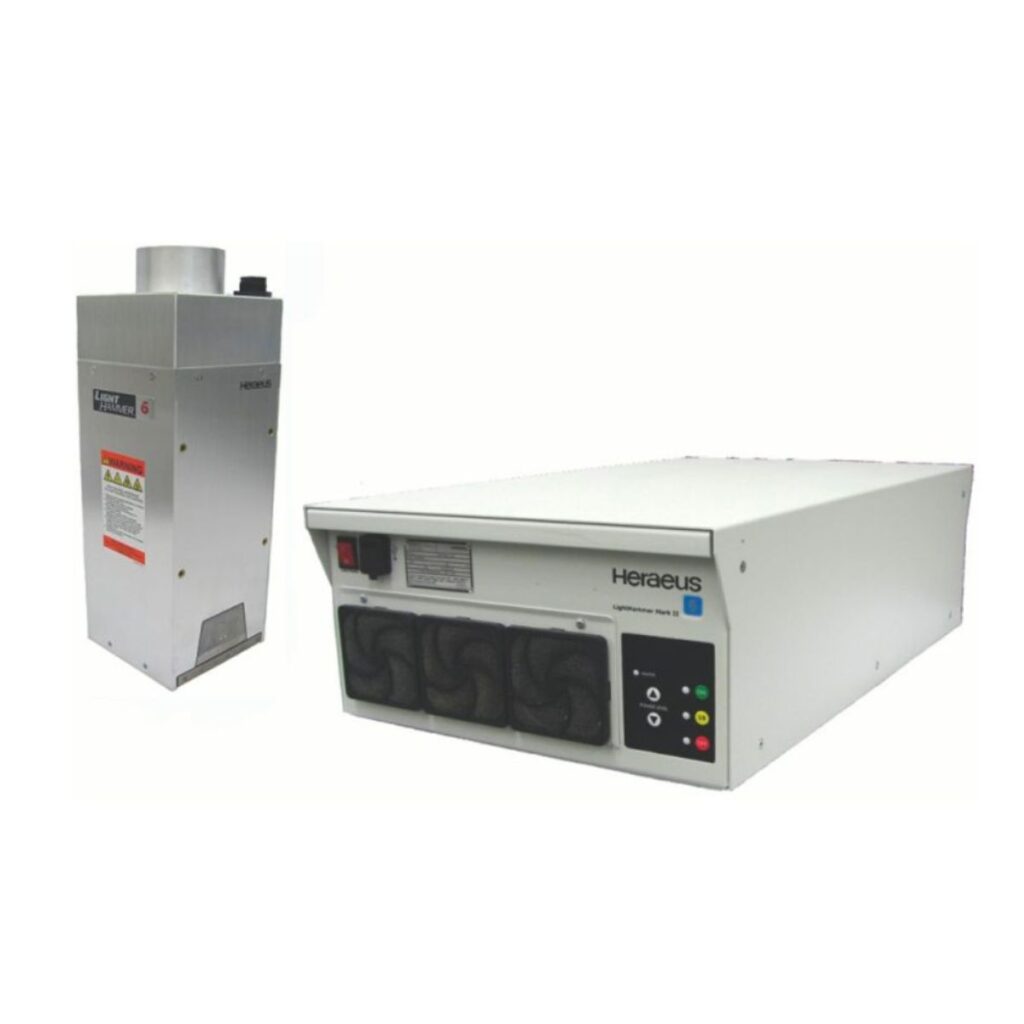

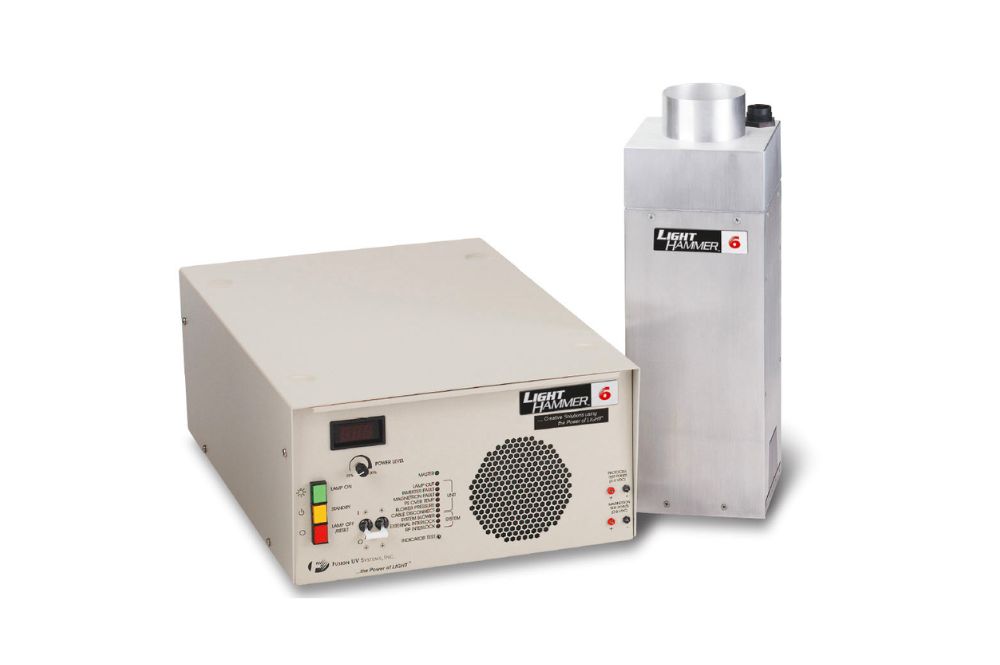

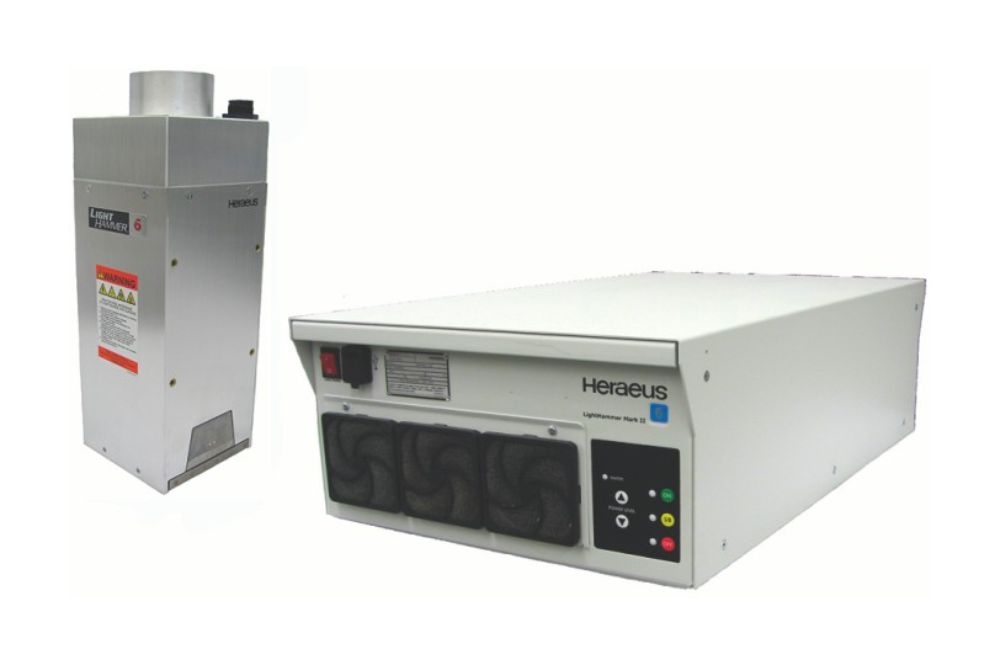

This system includes a 6-inch wide irradiator (lamp module), electrodeless bulb and solid-state power supply. Available with integral or external blower for cooling.
- Smart Power Supply: Flexible control scheme via software, reduced operating costs, smaller and lighter weight
Technical Specifications
| LightHammer® 10 MARK III | |
| Lamp bulb length | 25 cm, available in D, H, and V spectra |
| Power class | 240 W/cm (600 W/in) |
| Variable power capability | 35% to 100%, fast restarting |
| Irradiator footprint | W: 419mm, L: 777mm, H: 217mm (with the connector included) |

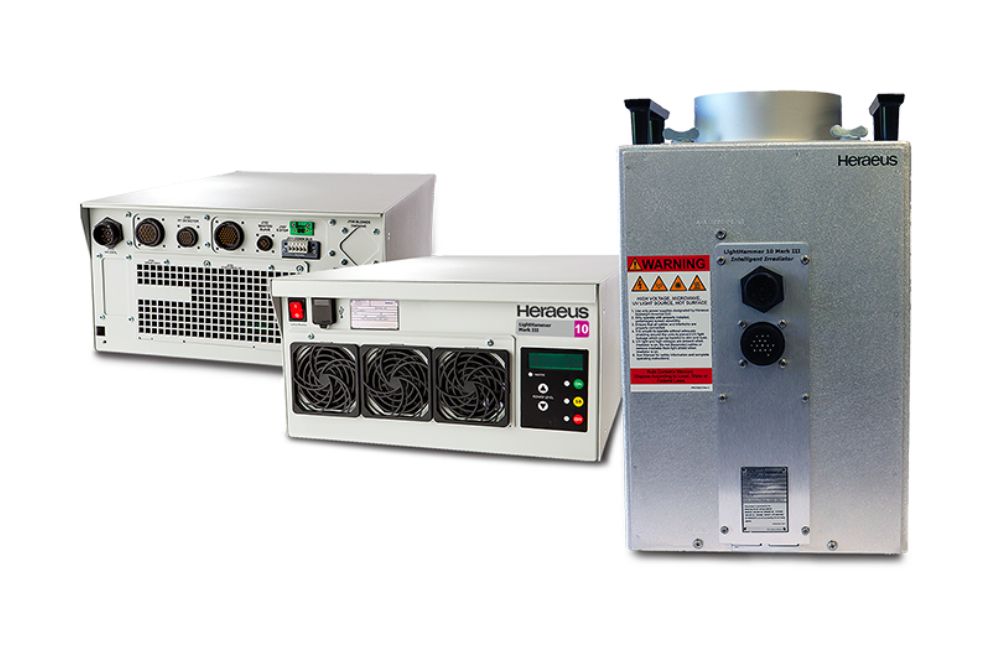

This system includes a 10-inch wide intelligent irradiator (lamp module), electrodeless bulb and solid-state power supply. Requires external blower for cooling.
- Smart Power Supply: Flexible control scheme via software, reduced operating costs, smaller and lighter weight
- Intelligent Irradiator: Sensors inside the lamp module measure 8 operating parameters, use real-time data monitoring to increase up-times and lower total cost of ownership
Key Features
- Reduced operating costs
- Industry 4.0 ready
- Simple and flexible controls
- Real-time system performance monitoring to reduce downtime
Key Industries
- Semiconductor, Solar & Electronics
